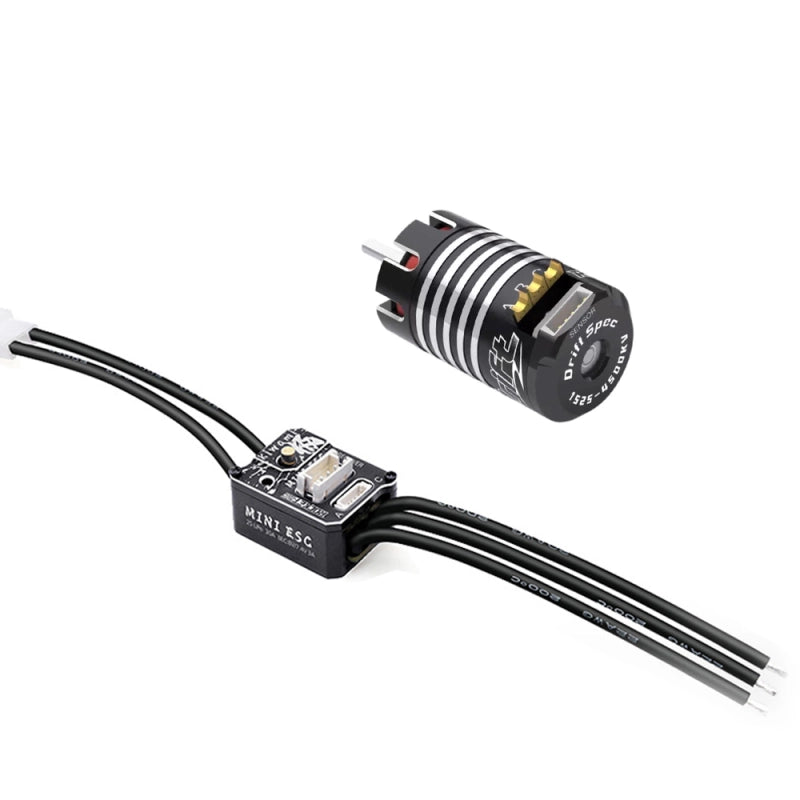

Rocket KIWAMI MINI Sensored Brushless ESC + Motor Combo Black (KIWAMI ESC + 4500KV Motor)

Features:

The max power of the motor is 80 watts, and the power output efficiency is as high as 92%.

Unique senosred and sensorless dual compatiblemode startup.

Thicken gold PCB circuit board, solder with ESC cablemake d the frame is perfectly wired.

Industry tandard sensor hole Spin-08 terminal isconnected with sensor cables.

The slot full rate is extremely high, and the internal resistance of the resistance value can obtain high power output.

NSK Bearings imported from Japan are extremely smooth at high speed.

The unique stator adopts 0 . 2mm silicon steel sheet,and the efficiency conversion rate can reach 94%.

2POLE super compliant linear high speed high temperature 200℃ rotor explosion-proof new magnet , Material 1EL / AIW ( H ) grade American MWS brand red high temperature wire rod .

Aluminum alloy front-end integrated casing design ,high-speed operation , stable and reliable.

German Schenker balancing machine adjustment,mini motor rotor balance accurate 2mg .

The maximum rpm of Turbo timing operation can reach 60.000 rpm.

Specifications:

Product: Mini 1525- 21.5T

SENSOR timing: SENSOR 0℃

KV(RPM/Volt):4500

Watts:80

Max voltage:8.4V

Max Amps:9A

Rotor Poles:2

IO(7.4V):0.35A

Resistance (mΩ): 0.414

Max RPM:60000

Rotor Size(mm): ∅6.0x14.5

Motor Size(mm)∅15x25

Weight(g):17

Shaft(mm): ∅2x10

Package Included:

1 * 4500KV Sensored Brushless Motor

1 * KIWAMI ESC

1 *Carte de programming

1 *Connection cable set

1 *Manual
