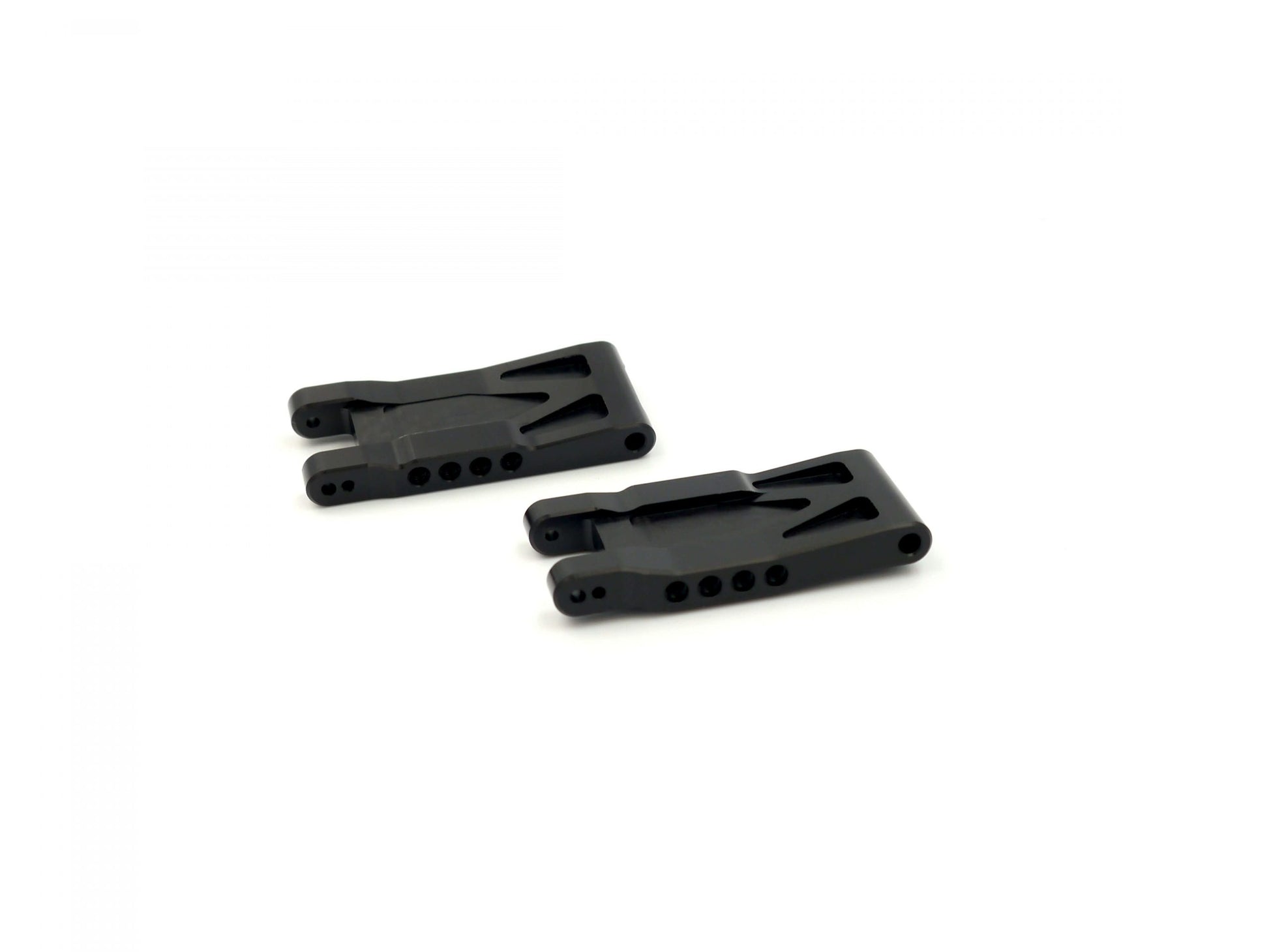

Reve D HT Rear Lower Arms (Pair) 48mm RD-009-48

REVE D HT REAR LOWER ARMS (PAIR) 48MM RD-009-48

The Reve D HT (High Traction) rear lower arms were completed by the Rêve D development team after conducting tests with various materials, shapes and dimensions to achieve the best rear traction.

The Reve D HT rear lower arms, which are made from lightweight and highly rigid Duracon (POM) material, is CNC cut, achieving a super accurate finish and dramatically improves suspension movement.
Furthermore, by using a reversible design, the damper mounting height can be selected from two types and can be easily adjusted according to the road surface conditions and the driving style (see the explanation below for details).

There are three lengths: 45 mm, 48 mm, and 51 mm. Please select according to your body width and suspension mount width.
Please try HT Rear Loar Arm for the best rear traction.

Accessible chassis

YD-2 series etc. Inner suspension pin can be used for 3mm and outer suspension pin is 2mm.

Accessories for HT rear lower arms

M2 tapping screw x 4 pieces (for fixing outer suspension pins)

POM 6mm thick spacer x 2 pieces

* The width of the HT rear lower arm on the inner suspension pin side is 6mm narrower than the original suspension arm of the YD-2 series.
Therefore, when using it with the YD-2 series, use the included 6 mm thick spacer.

Product Lineup

RD-009-45: HT Rear lower arm 45mm

RD-009-48: HT Rear lower arm 48mm

RD-009-51: HT Rear lower arm 51mm

RD-009M: Maintenance set for HT rear lower arm
(Maintenance set content: M2 tapping screw x 4 pieces, 6mm spacer x 2 pieces)

Explanation of reversible structure

The mounting height of the damper can be selected by replacing the left and right suspension arms.

Down position

You can positively induce roll and improve lateral grip.

Straight position

It improves traction performance and enables competitive driving.
* Depending on the machine used and the specifications of the damper, it may be necessary to change the length of the damper or the upper mounting height of the damper.

Download instruction manual

*Please click each link to enlarge the diagram.

RD-009-45_Manual_01

RD-009-48_Manual_01

RD-009-51_Manual_01
