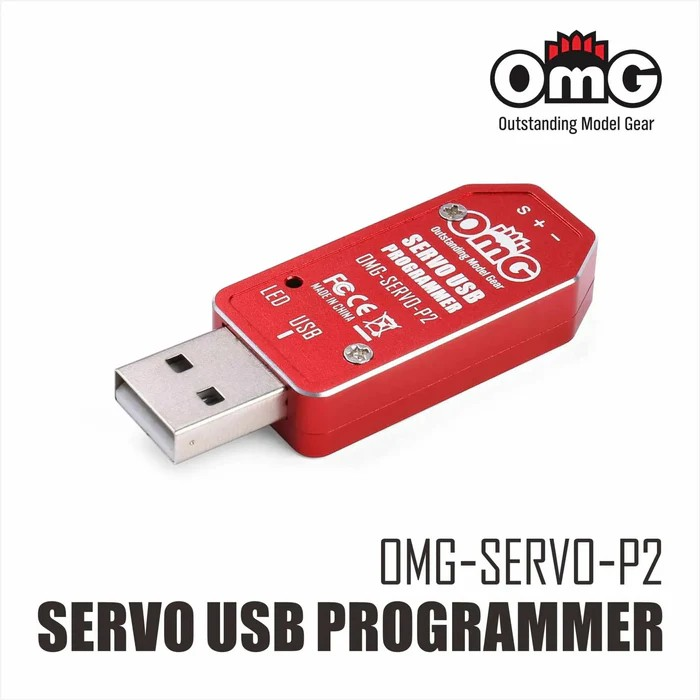

OMG USB V2 Aluminum Servo Programming Card RED - OMG-SERVO-P2/RD

Servo programming card V2 - OMG

Compatible with OMG servos: D4/R4/R5/A3 series

compatible windows.

Serial port: connecting USB and computer

Set serial: The computer will automatically detect the USB port

Open serial: Confirm that the servo is connected to the computer through the USB programming card

Min angle: Set the left and right swing of the servo, the reference value is 1-200

Max angle: Set the left and right swing of the servo, the reference value is 1-200

Neutral angle: Set the neutral angle of the servo, the reference value is

2000-6000

Min pulse width: The Min range of signal received by the servo, reference value is 5-1900

Max pulse width: The Max range of signal received by the servo, reference value is

1500-2500

Dead band: Set the sensitivity of the servo, the lower the value, the higher the sensitivity, reference value is 1-10

Gain: Set the Neutral position returning strength, reference value is 0-60

Damping: Set the Neutral position returning speed, the reference value is 0-255

Output power: reference value is

500-1150

(45%-96%)

Stall protection:

Time: When the load of the servo exceeds the range, the servo will enter the protection state within the set time, reference value is

500-6000

(1000=3 seconds)

Power: When the servo enter the protection state, the actual output power will be 0-1200

Inversion: Change the swing direction of the servo.

Soft start: After powering on, the servo will slowly move to the current input signal position.
