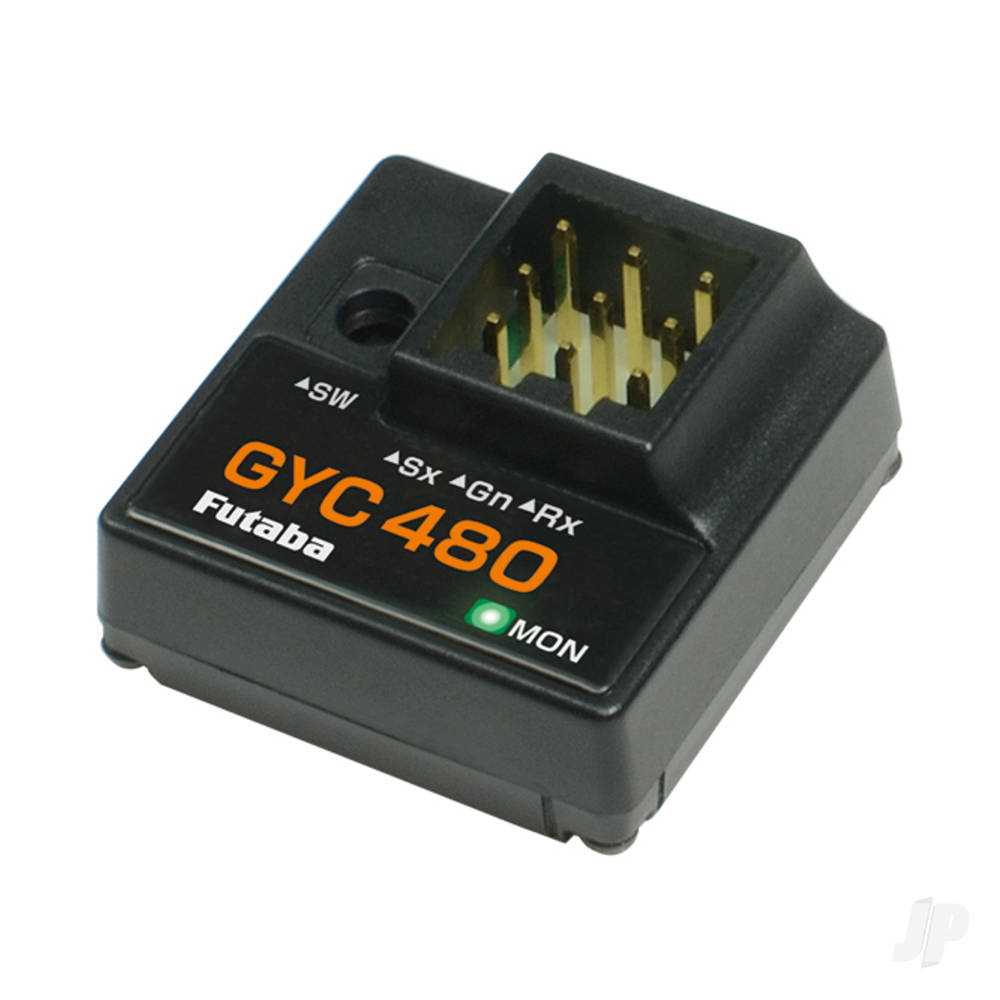

Futaba GYC480 All-Purpose Car Gyro - FUT05102754-3

Key Features

Angular Velocity Detection Method: Vibration Gyro Sensor

Operating Voltage: DC 4.0V - 8.4V

Current Consumption: 30mA (when servo is not connected)

Operating Temperature: -10°C - 45°C

Functions: Monitor LED, S.BUS/S.BUS2 Compatible

Product Description

Equipped with UR mode for direct operation even through the gyro

The classic grip gyro GYC470 has been redesigned with the addition of UR mode!

Functions:

Compatible with the F-4G's UR/SR mode servos for high-speed response system.

Remote gain function: Set the gyro sensitivity from the transmitter. (A transmitter/receiver with 3 or more channels and capable of adjusting the steering angle of 3 channels is required.)

Settings specifically for RC cars: While suppressing the effects of road surfaces, etc., the synergistic effect with UR mode response provides comfortable straight-line and cornering performance to help improve lap times.

Ultra-compact and lightweight: Ultra-compact and lightweight design achieved through full use of high-density mounting technology.

Compatible with S.BUS systems (can also be used with systems other than S.BUS): Can be connected via S.BUS in combination with an S.BUS receiver.

For digital servos only: For use with Futaba HPS/BLS servos and digital servos only. Analogue servos cannot be used.

Normal/AVCS mode.

High-speed response mode.

Turn-in adjustment.

Gyro curve adjustment.

Left and right endpoint adjustment.

EXP rate adjustment.

Stick priority mode adjustment.

Support wireless adjustment function.

Note: Wireless settings are only available for F-4G systems: T10PX, T6PV, R404SBS and R404SBS-E.

A software update is required for T10PX, T6PV, R404SBS, and R404SBS-E to enable wireless settings for GYC480 and GYD560.

Manuals & Parts Explosions

Technical Specifications

Weights & Dimensions

Weight

3.7g

0.13oz

Shipping Weight

0.00kg

0.00lbs

Product Height

11mm

0.43in

Product Width

21mm

0.81in

Product Length

21mm

0.81in
