TEAM ASSOCIATED DC10 DRIFT CAR KIT - AS30134

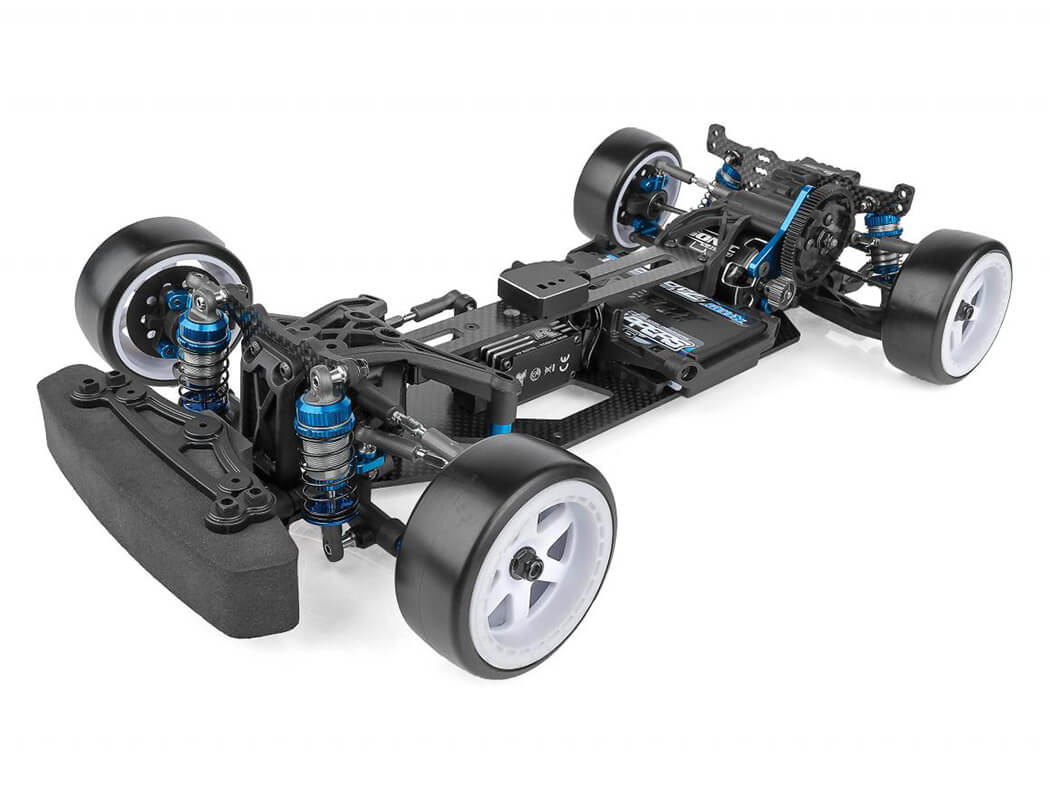

TEAM ASSOCIATED DC10 DRIFT CAR KIT



Since 1964, Team Associated has proven to be the leader in competition racing. And with its roots in on-road racing, it makes sense that our Area 51 engineers would develop the ultimate RC drift car, the DC10. In RC drifting, vehicle balance is key. With the many suspension and chassis tuning options of the DC10, drivers can set up their car with precision. From camber, caster, and kingpin inclination (KPI), to motor and battery position, the Team Associated DC10 1:10 RWD Competition Drift Kit has it all!

Features

Factory Team hard-anodized threaded aluminum shocks

Factory Team 2.5mm carbon-fiber drift chassis

Factory Team 2.5mm carbon-fiber shock towers

Two Factory Team 2.5mm carbon-fiber top plate options included

Factory Team blue-anodized aluminum chassis post

High and low motor mounting options

+6mm transmission height adjustment insert allows for higher roll center and larger spur gear

Maximum steering throw for optimal control drifting through turns

Easy-to-tune caster adjustments can be made without tools

Adjustable battery placement

Fully tuneable, blue-anodized aluminum Ackermann plates

Easy-to-adjust camber

Adjustable offset wheels hexes

Adjustable servo mount locations

Precision rubber-sealed ball bearings throughout

Rear mounted electronic speed control (ESC) plate

Adjustable rear anti-squat and toe-in

Suspensions

Power Source: Electric

Terrain: On-Road

Body Style: Other

Scale Size: 1:10 Scale

Assembly Level: Kit*

Width: Varies

Wheelbase: 257mm (10.12in)

Weight: Varies

Internal Gear Ratio: 2.6:1

Drive: 2WD

* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

Required To Complete

1:10 scale 540-size electric motor (AS27481 Sonic 540-SP5 13.5T Brushless Motor)

7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height) (AS27397 Reedy Zappers SG5 LiPo 4000mAh 130C 7.6V LP Shorty)

Radio control battery charger (AS27203 Reedy 1416-C2L Dual AC/DC Competition Balance Charger)

2-channel RC car surface transmitter and its batteries

2-channel receiver

Steering servo (AS27154 Reedy RS1606A Low-Profile Hi-Speed HV Servo)

Pinion gear (48 pitch)

Spray paint for Lexan(R) body

1:10 scale wheels and tires

Drift steering gyro

Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors (AS1737), Reamer / Hole Punch, FT Wrench Set (AS1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Callipers or a Precision Ruler
