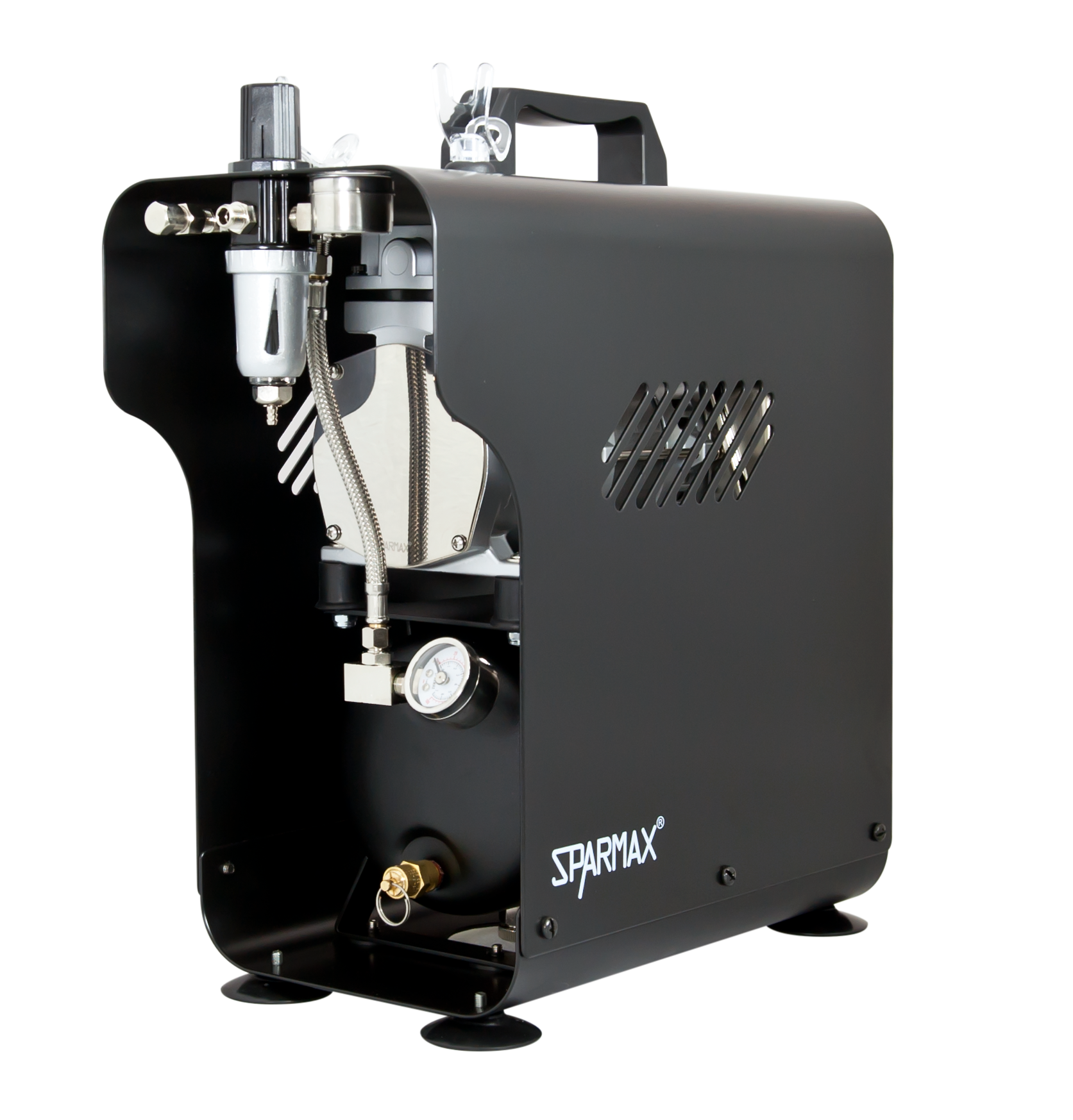

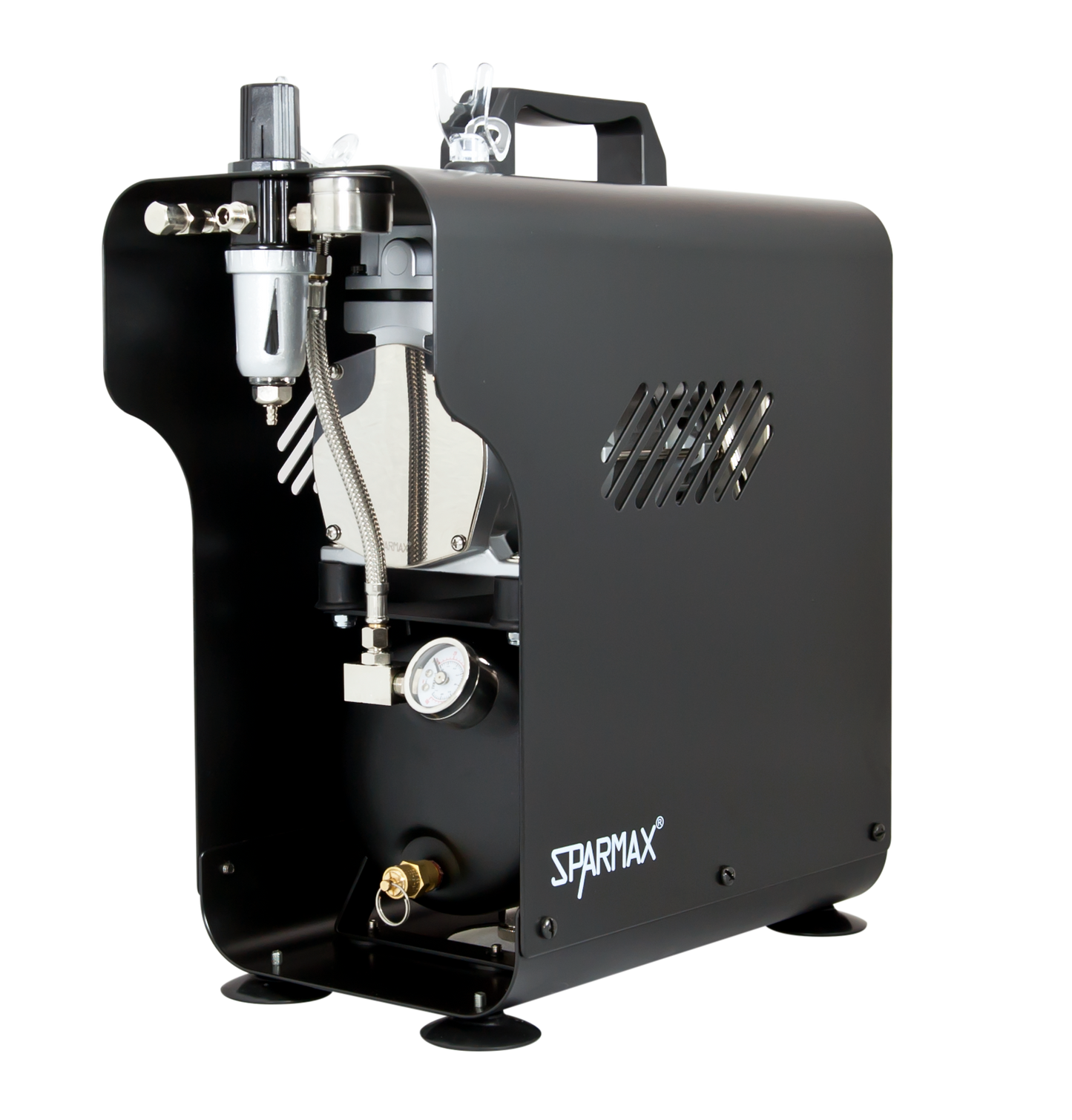

Sparmax TC-620X compressor - C-TC-620X

The Sparmax TC-620X is a powerful automatic twin piston compressor with a 2.5L air tank. It has ample power for any airbrushing task and is suitable for professional airbrush users doing general or extended airbrush applications. With its 2.5L air tank it provides smooth and consistent airflow.

Being automatic, when the TC-620X's air tank pressure falls below 40psi, the compressor runs to recharge the tank back to 60psi and then switches off - the compressor runs to the demand of the air tank, rather than switching on/off every time the airbrush trigger is pressed.

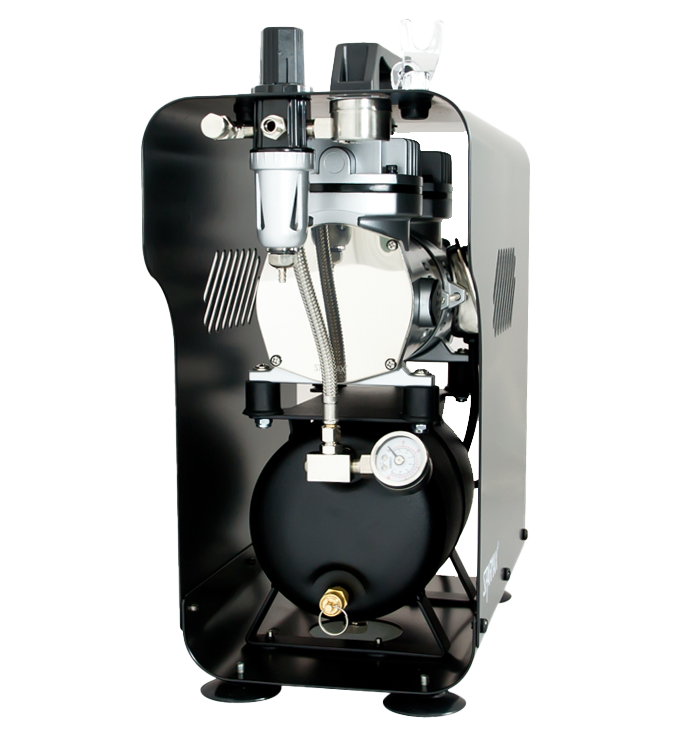

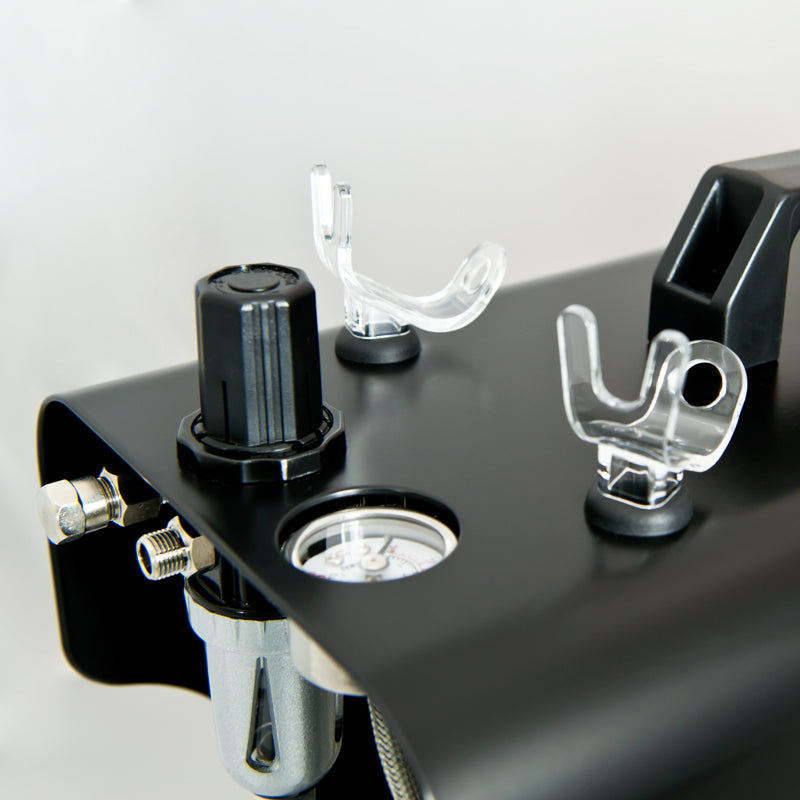

The TC-620X's is enclosed in a sturdy steel case with carrying handle & is fitted with a mounted adjustable pressure regulator / moisture filter, pressure gauge, twin airbrush holders & air tank mounted pressure gauge. The pressure regulator has 2 x 1/8 BSP outlets (1 x blanking cover included) & is supplied with 2 x 3M braided 1/8 BSP hoses. With the extra air outlet, you can now connect airbrushes beforehand and switch between use of airbrushes. Clean and stable air, controlled for your desired applications.

The Sparmax TC-620X compressor features:

Low maintenance, oil-less twin piston air compressor
2.5 Litre storage tank with mounted pressure gauge
Working pressure from 0 psi to 60 psi (4.1bar)
Auto on/off switch: 2.8/4.1 bar (40/60psi)
Air flow: 23 - 32 lpm (0.81 - 1.13 cfm) at open flow
1/6 HP (135 Watt) Motor
Time to charge 30 Sec. (no load)
Time to recharge 10 Sec. (no load)

2 x 1/8 BSP outlet on compressor
Mounted pressure regulator, moisture filter & gauge set on case
2 x 3M Braided hoses
2 x Detachable airbrush holders
Noise level: 54 decibels
Size: L33 x W18 x H34.5 cm (13" x 7" x 13.58")
Weight: 10.4 kgs (23 lbs)
Voltage: 220-240V 50Hz
Duty cycle: 60 minutes continuous use. Please allow the motor to rest for at least 20 minutes after each cycle of continuous use.
Suitable for running two of the following airbrushes (or similar) concurrently:

Sparmax SP35, SP35C, MAX-3, MAX-4, HB-040, SP-20X, DH-125
Sparmax GP-35, GP-50
Premi Air G35
Neo for Iwata
Iwata Revolution
Iwata Eclipse (except G3, G5, G6)

Iwata HP
Iwata HP-Plus
Iwata Hi-Line
Iwata Hi-Line HP-TH (will only run one)
Iwata Custom Micron
Iwata Kustom series (or one HP-TH)
Paasche CC
Paasche F
Paasche Talon
Paasche V
Paasche VJR
Paasche VSR90
Paasche VV
Badger 100
Badger 150 (except with HD head)
Suitable for running one of the following airbrushes, small spray guns or similar:

Sparmax GP-850
Iwata Revolution BR, CR, SAR, BCR, TR1, TR2, M1, M2
Iwata Eclipse G3
Iwata Eclipse G5
Iwata Eclipse G6
Iwata Hi-Line HP-TH
Iwata RG-3
Iwata LPH-50
Sparmax TC-620X Manual:

Paasche H
Paasche HS
Paasche VL
Paasche VLS
Paasche MIL-SET
Paasche AEC
Paasche 200T
Badger 150 HD
Badger 155
Badger 175
Badger 200
Badger 250
Badger 260
Badger 350
Asturo C3
If you require further advice on choosing the most suitable equipment for you needs and budget please contact us.
