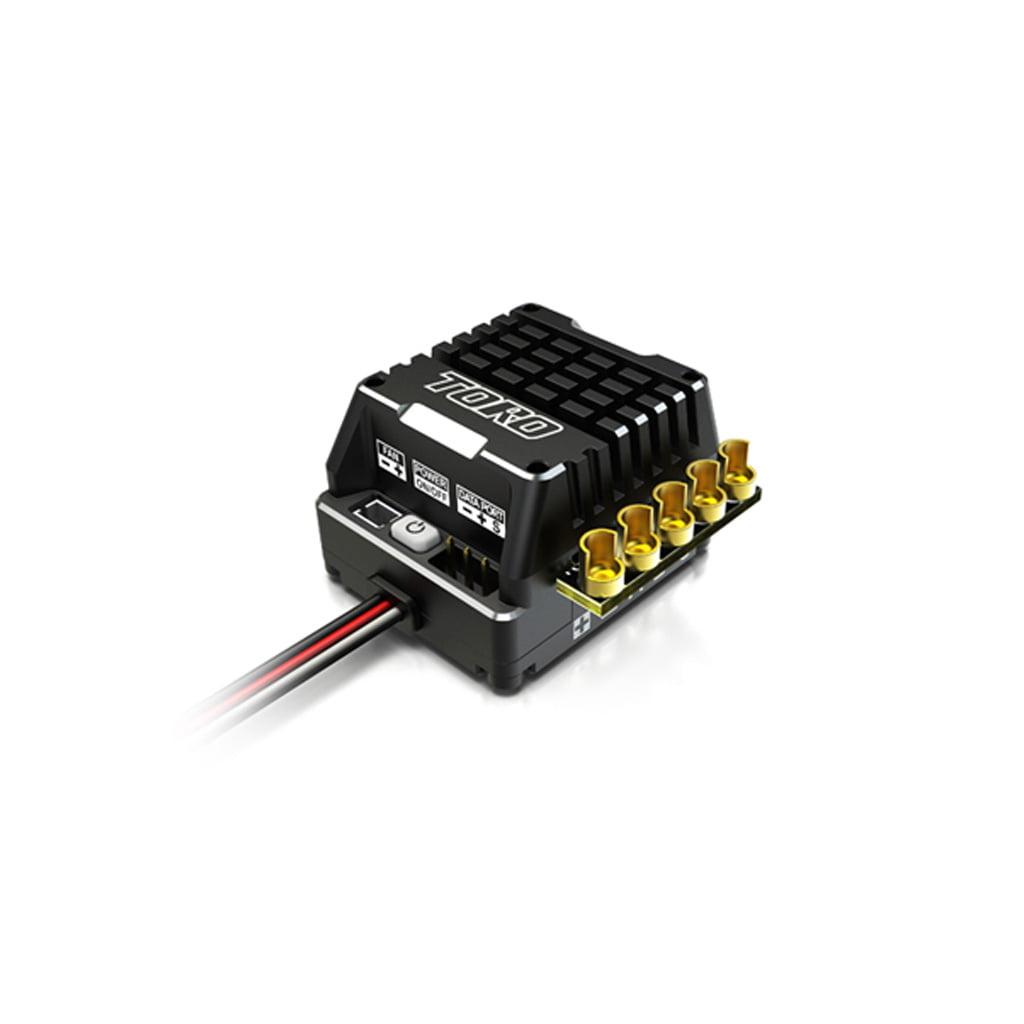

SkyRC TORO TS 160 ESC - SK-300064-01

TORO TS160 Competition brushless speed controller is designed for 1/10th applications. It operates 2S to 3S LiPo batteries with a compact size of 30.6*35.6*22.5mm and it features a high-voltage BEC system with selectable 6V or 7.4V output, internal power capacitors, an optional high-speed fan unit including fan guard and all alloy case construction.

For 1S use this speed control requires an external BEC booster.

SPECIFICATIONS

Constant/Burst Current - 150A/600A
Motor Compatible - Brushless Sensor & Sensorless ESC
Car Compatible - 1/10 and 1/12 all competitions, 1/10 and 1/8 crawlers
Motor Limits - 2S Lipo or 4-6S NiMH >=3.5T(1/10 on-road),>=5.5T(1/10 off-road)
3S Lipo or 7-9S NiMH >=5.5T(1/10 on-road), >=8.5T(1/10 off-road)

Resistance - 0.00018ohm
Battery Cell Count - 4-9S NiMH or 2-3S LiPo
BEC Output - 6V/7.4V@5A,switch
Size - 30.6x35.6x22.5mm (LxWxH)
Weight - 45g (w/o wire)
FAN - 8V@0.2A , MAX 12.6V
