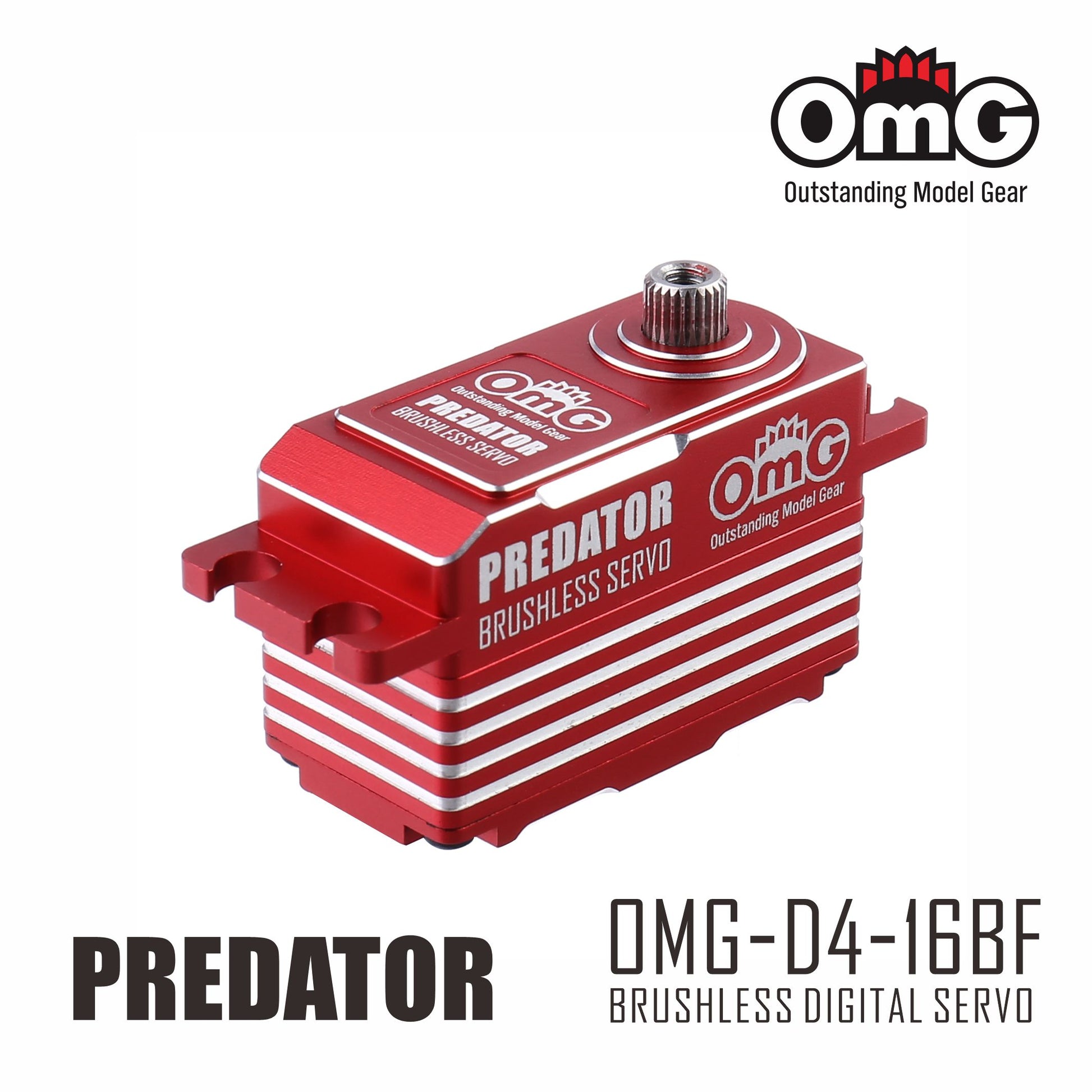

OMG PREDATOR Low profile high torque brushless metal servo RED - OMG-D4-16BF/RD

OMG-D4-16BF(PREDATOR)

Operating Voltage Range: 4.8 -8.4v

Bearing Type: Dual Ball Bearings

Speed: 4.8v (0.075/s) , 6.0v (0.070/s) , 7.4v (0.060/s) 8.4v (0.055/s)

Torque: 4.8v (13 kgf.cm) , 6.0v (15 kgf.cm) , 7.4v (17 kgf.cm) 8.4v (18 kgf.cm)

Limit angle: 120°± 10°

No-load Current (mA): 550max

Signal control method: PWM analogue digital control

Connector Wire Gauge: 22 AWG Black Wire

Connector Type: JR

Frequency: 1520us/333Hz

Shaft: 5.9 * 25T

Tooth: 25T

Size: 41mm x 20.5mm x 26mm

Weight: 53g

For: 1/10th drifting cars, touring cars and FWD cars, characterized by high torque and moderate speed. Parameters can be tuned according to the driver's habits

Material: Aluminum Case

Colour: BK/RD/VT

Type: Digital Brushless High Voltage Servo

Gears: Stainless Steel

Brushless Motor

Digital precision provides great accuracy and performance

Compatible with all types of Radio system

ESC Min BEC Output Recommendation: 5.75@3.2A

OMG-D4-16BF

Drift recommendation:

--Gain:15-18

--Damping:170-220

--Power:850-950

Servo feels powerful and predictable Touring car recommendation:

--Gain:25+

--Damping:50-80

--Power:950+

High gyro gain 65% Beginner gain 5-10 Damping 180 Power950

Normal gyro gain 50-60% Regular gain 10-20 Damping 180 Power 950

Low gyro gain 40-45% Pro gain 20-30 Damping 180 Power 950
