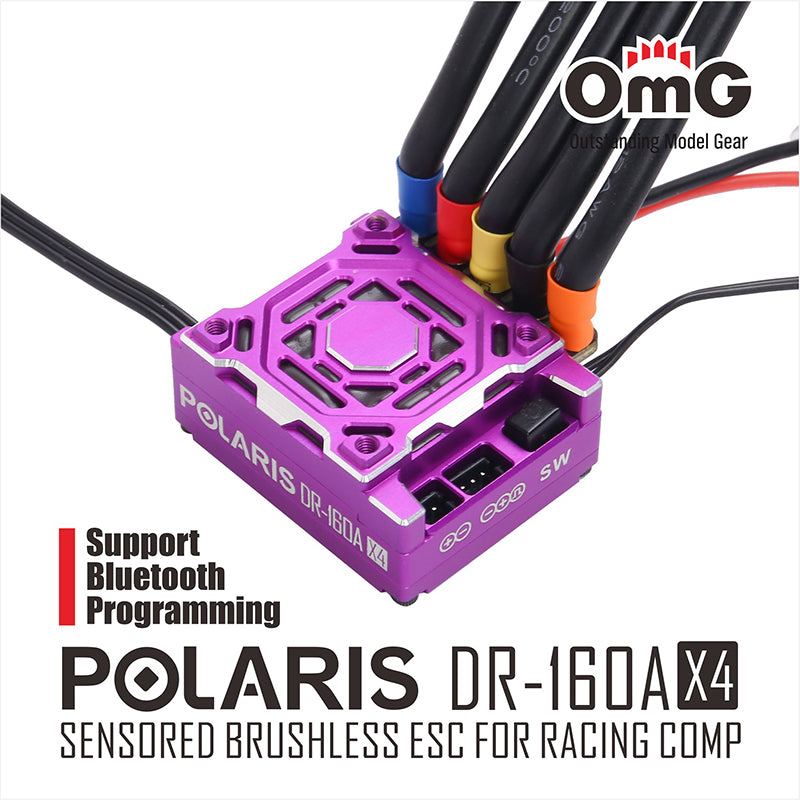

OMG POLARIS 160A Sensored Brushless ESC PURPLE - OMG-POLARIS DR-160AX4/VT

POLARIS 160A Sensored Brushless ESC Support Programming with Bluetooth Program Module (OMG-ESC-P4) Sold Separately.

New 32-bit 160A Racing level ESC for 1/10th RC Cars

Technical Spec,

type:

Power wire spec: 12#160mmx2

Motor wire spec: 12#160mmx3

Power plug: none

Output plug: none

Basic Spec

Continuous output current: 160A

Peak output current (instantaneous): 760A

Battery cells: 2-3s lipo

BEC output: 6V/7.4V adjustable/4A

Programming Type

Parameter programming : Free ESC1 APP (Android & Apple APP)

Firmware online upgrade: supported

ESC size: 37x38x31.5mm

ESC weight: 101g

Product Feature:

1、32-bit microprocessor with more powerful processing capability and more accurate motor output.

2、Full aluminum case with highly efficient heat dissipation system and strong current resistance capability.

3、Plenty of adjustable parameters supports most types of racing.

Reverse mode BOOST timing TURBO TIMING Throttle descent Braking curve Throttle response

Running mode Braking frequency Throttle attenuation Braking response BOOST triggering mode

Throttle midpoint width Forward braking force

4、The ESC has a built-in maximum BEC output current of 10A. The output voltage is adjustable at 6.0V/7.4V, easily meeting various powerful servos and high-voltage servos.

5、With Real-time data recording function, which supports real-time checking of ESC maximum temperature, motor speed, voltage, timing and other datas.

6、New software design with ultra-smooth startup and precise throttle linearity.

7、Bluetooth module is connected to adjust parameters and upgrade software through the mobile APP ( Supports real-time parameter adjustment. No need to restart the ESC )

8、Multiple protections: high-voltage protection, low-voltage protection, throttle signal loss protection, stall protection and over-temperature protection

Bluetooth

1. Reset password : When the ESC turns on, press and holding the power button around 10 seconds, the ESC will restore the Bluetooth password to default setting 0000.

2. With RCOMG Bluetooth, connected the RCOMG app to the ESC, the user can program parameters, upgrade firmware and check the real-time data of the ESC on the APP.

3. Due to the range limit of Bluetooth, the operational distance is around 10 meters.(If there are many metals or other strong interference signals or obstacles around will short

the operational distance)

4. The Bluetooth name can not be changed.

5. The Bluetooth connecting will be failed during the ESC throttle calibration process.

Throttle Calibration

1. Connect the ESC with the battery and receiver well, then turn on the transmitter.

2. Press and holding the power button until the blue LED is on solid, the motor have a long beep at the same time, then release the power button, the red led will be on solid,

the ESC enters to the calibration mode.

3. Pull the throttle trigger to the full throttle position, the blue led blinks three times and the motor beeps once, the full throttle position is saved.

4. Push the throttle trigger to the full brake position, the blue led blinks three times and the motor beeps twice, the full brake position is saved.

5. Release the throttle trigger to the neutral position, the blue led blinks three times and the motor beeps three times, the throttle calibration is completed.

6. The ESC can support reverse throttle calibration, if the transmitter throttle set reverse (it means pull the throttle will go to 1000 throttle position/normally is 2000, and push the

throttle will go to 2000 throttle position/normally is 1000), then you do the throttle calibration the same way as usual (as above), it will not have any effects on the ESC for

ward and revers way even if the transmitter throttle set reverse. Remark: No need to restart the ESC again after throttle calibration finished. Do not move the throttle during

the time of the blue led blinks.

Android App downloading procedure

l. Scan the QR code to download the App ( the name of the app is ESC1) with any search engine.

2.Click “ download ”“ install ”“Open” and choose allow to all the pop-up questions to turn on

Location Services & Bluetooth on your phone, and then click “Connect” to connect the ESC.

iPhone App downloading procedure

l. Search for “ESC1 in the App Store or scan the QR code to download and install the App.

2.Turn on Location Services & Bluetooth on your phone, open the App / ESC1 and then click“ Connect” to connect the ESC

Note

Bluetooth programmer name : BLE-AD0B80E4-C284

The factory default password for Bluetooth is 0000 (with the ESC powered on ,

press and hold the power button for about 10 seconds to reset it to factory default ).
