HAYATE Drift Maintenance Stand - G0901
HAYATE Drift Maintenance Stand - G0901
Couldn't load pickup availability

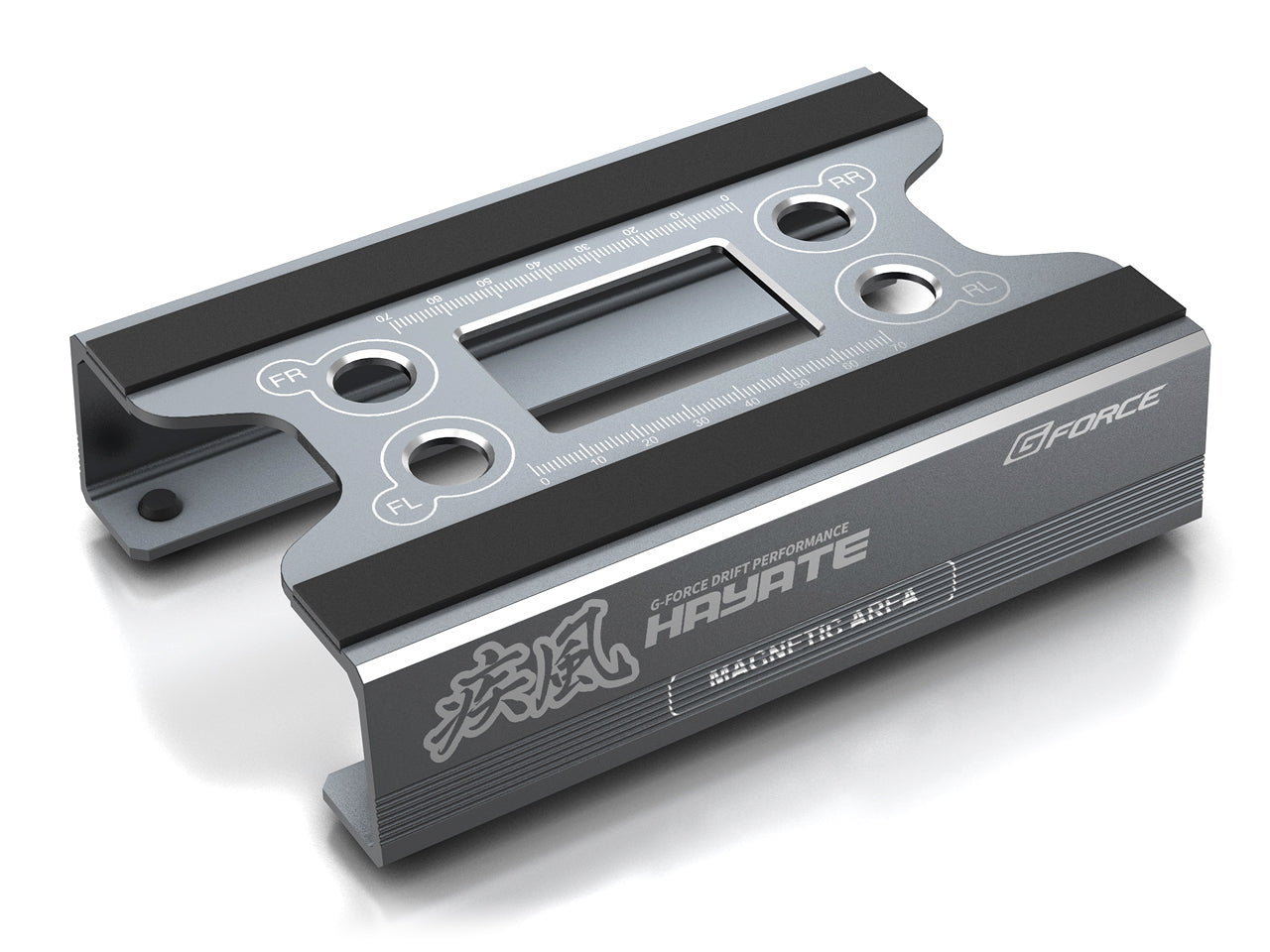

HAYATE Drift Maintenance Stand - G0901
- Compatible vehicles: 1/10 drift cars, on-road cars
- Material: Aluminum
- Size: 165×112×45 (mm)
- Weight: 234g
Product Features
- Both the stand body and balancing bar feature a cool gunmetal anodized finish
- Ideal for drift cars with large downstrokes! Mid-height design with a height of 45mm
- Comes with an aluminum balancing bar convenient for center of gravity positioning and various measurements
- Maintenance stand made of full aluminum with excellent rigidity
- Check the key to drifting, the center of gravity position, with a balancing bar
- Comes with a 540 size motor holder for easy motor break-in and soldering
- Equipped with a magnetic area on the side of the main unit
Includes a mid-height design ideal for drift cars & a balancing bar convenient for measuring center
of gravity position.
The 45mm mid-height design is ideal for drift car operations with large downstrokes. Additionally, an aluminum balancing bar is included for convenient center of gravity positioning and measurement. Using the balancing bar as a fulcrum, you can check the center of gravity position of the vehicle. Since the vertices of each triangle have different widths, it is possible to measure with different precisions.
Shippu logo & gunmetal anodized finish
The stand body is finished with a glossy, subdued gunmetal-like anodized finish. An original version laser-engraved with the HAYATE brand logo.
As a measuring instrument
The balancing bar is a triangular prism that can stand vertically. Additionally, the zero-start scale engraved on the side allows for easy vehicle height measurement.
Easy measurement anywhere
Even when mounted on the chassis, turnbuckle length can be easily measured with a compact balancing bar, which is difficult to measure even with calipers and similar tools.
Functional design for easy maintenance
On the top surface, there are motor maintenance holes convenient for securing motors during soldering work, and damper holes for blowing air from oil dampers.

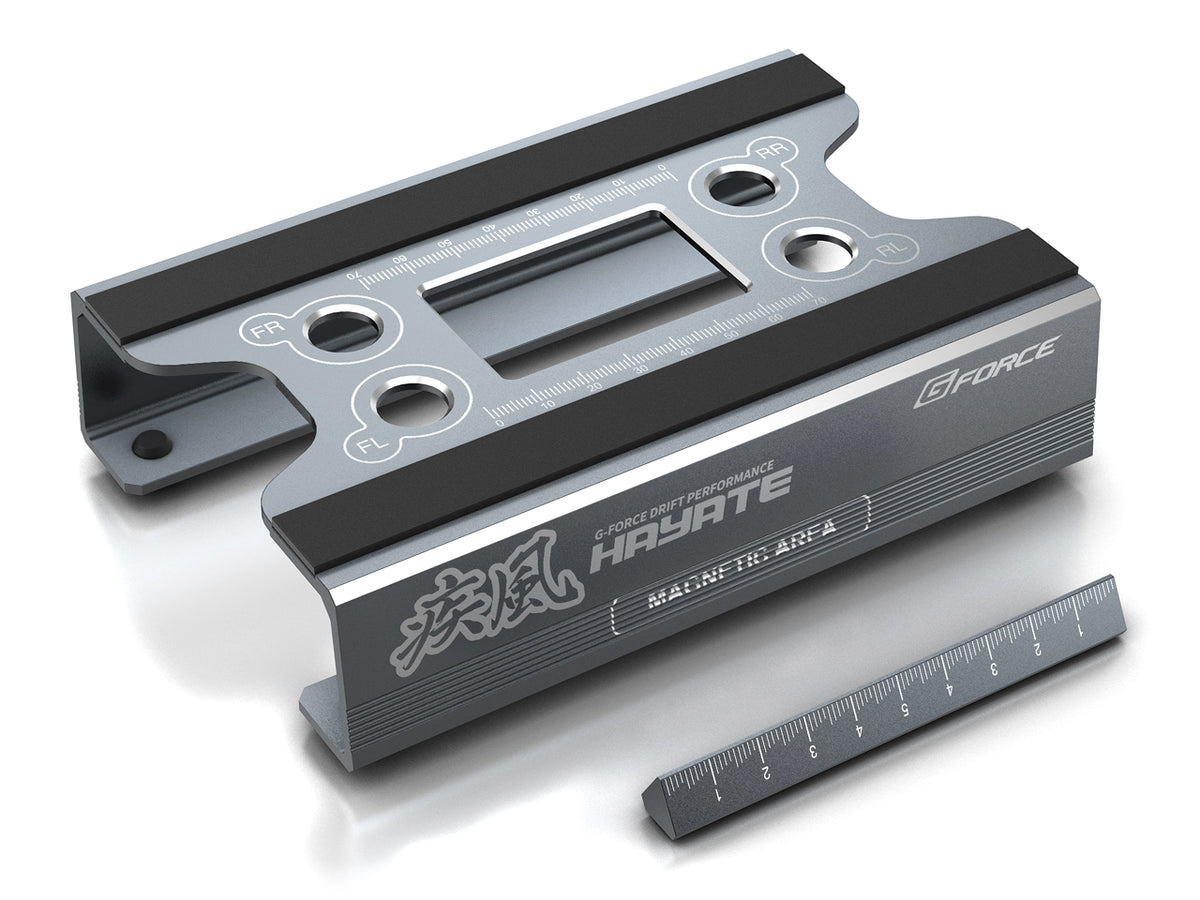

contents
- Maintenance Stand Main Body
- balancing bar
- Instruction manual

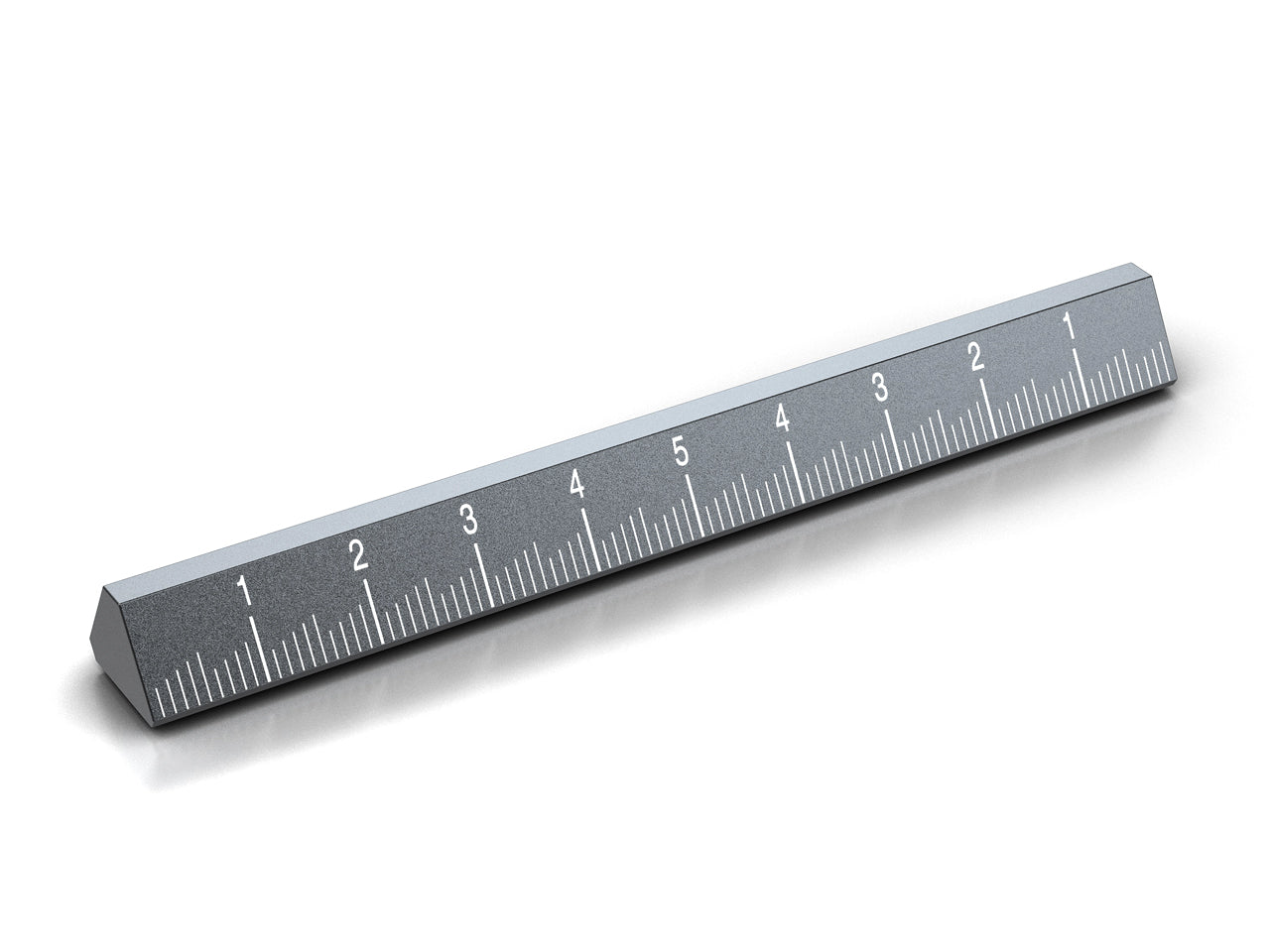

About the Balancing Bar
How to use the balancing bar
Using the balancing bar as a fulcrum, you can check the center of gravity position of the vehicle. Since each triangle vertex has a different width, measurements can be made with varying precision. Additionally, the sides of the bars feature zero-start markers in 1mm increments, which help measure ride height and turnbuckle length.
Measurement of Center of Gravity Position
Place the balancing bar on the top of the maintenance table.
Place the bike body on the balancing bar, and the point where the front and rear (left-right) balance is the center of gravity.
