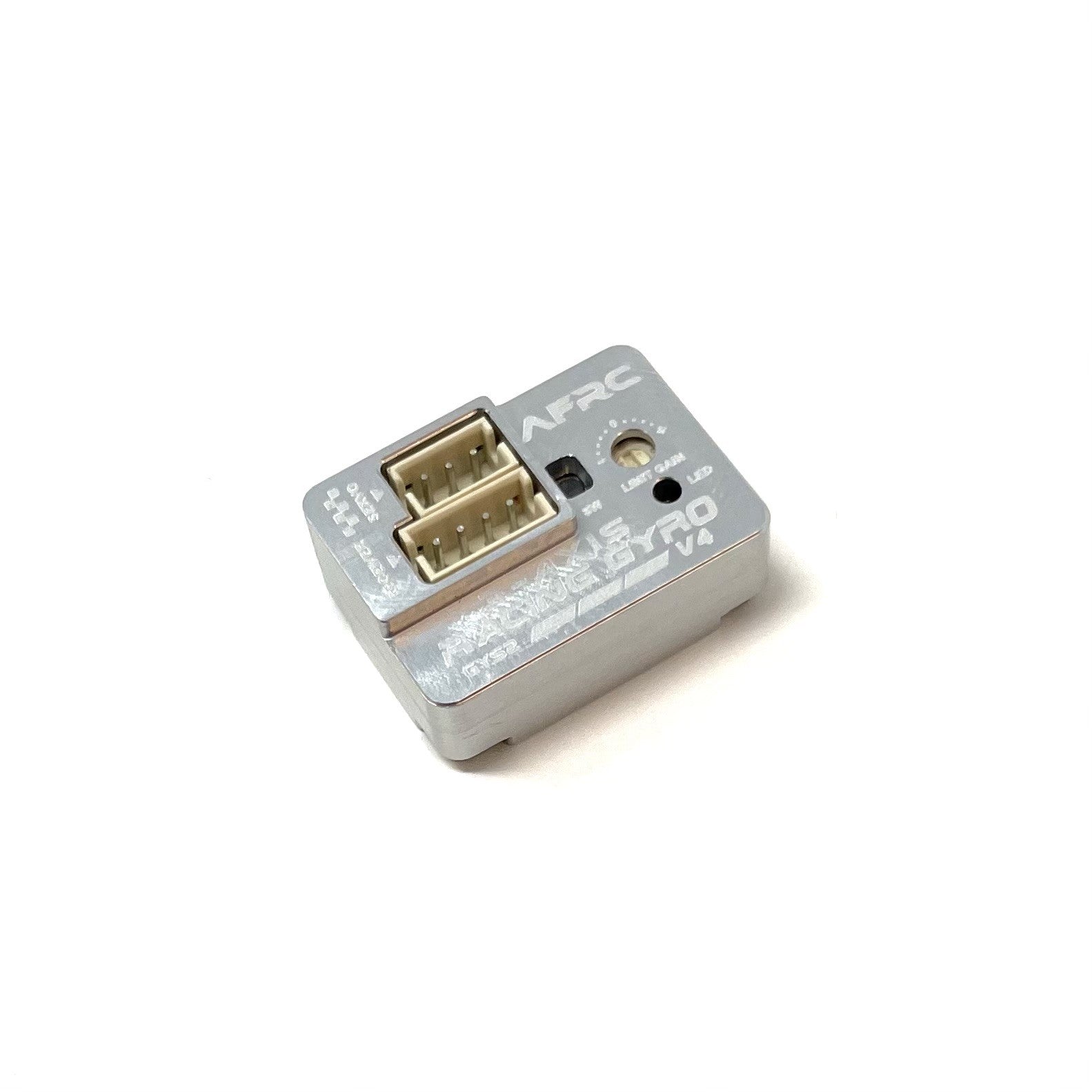

AFRC GYS-2 V4 Gyro (SILVER LIMITED EDITION) AFRC-GYS2-V4-S - RTS-365

GYS-2 V4 3-AXIS SILVER LIMITED EDITION (For RTS) DRIFT Gyro Super Light MINI 1-24 1-28 AFRC GYS-2(SILVER)

*THIS LIMITED EDITION SILVER COLOR is the perfect match for the RTS 1/24 Car.

The shell adopts all metal CNC processing and surface anodizing treatment

Exquisite and compact design, suitable for mini Z/Q/D/R and 1/28,1/10 Drift car

High quality gyroscope sensor has more stable performance and longer service life

Combined with the feedback of multi professional evaluation, the program optimization is more reasonable

X, Y, Z 3-axis can be set to match more rc cars. Multiple sensitivity modes are available for more application scenarios.

Dimensions: 21 x 15 x 8.5 mm(0.83 x 0.59 x 0.33inch)

Working Voltage: 3.7 ~ 8.0V

Weight:4g

Current Drain: Less than 30mA

Operating Temperature:-10℃+50℃

Gain Mode: Normal / AVCS Mode

Operating Voltage: PID Control System

Input Signal: PWM(50~333Hz)/SANWA SSR/SUR/SXR/SHR;FUTABA S.BUS/S.BUS2

Input & Output Plug: JST1.5mm (attached the signal input cable to connect with receiver)

X, Y, Z three-axis selection:

Press and hold SW to power on to enter the travel setting, then double-click SW to enter the axis selection, the red light

flashes twice and it will stay solid red light (default Z axis), press SW to switch to the X axis green light It flashes twice quickly

and turns on, then press it again to switch to the Y-axis, the blue light will be solid, and continue to press SW to switch to the

Z-axis. If you do not operate the SW key for 5 seconds, it will automatically exit, and the gyro will automatically enter the initialization.

Model Number: AFRC-GYS2-V4-S

Use: RC Drift Car

Colour: Silver

Material: Metal
