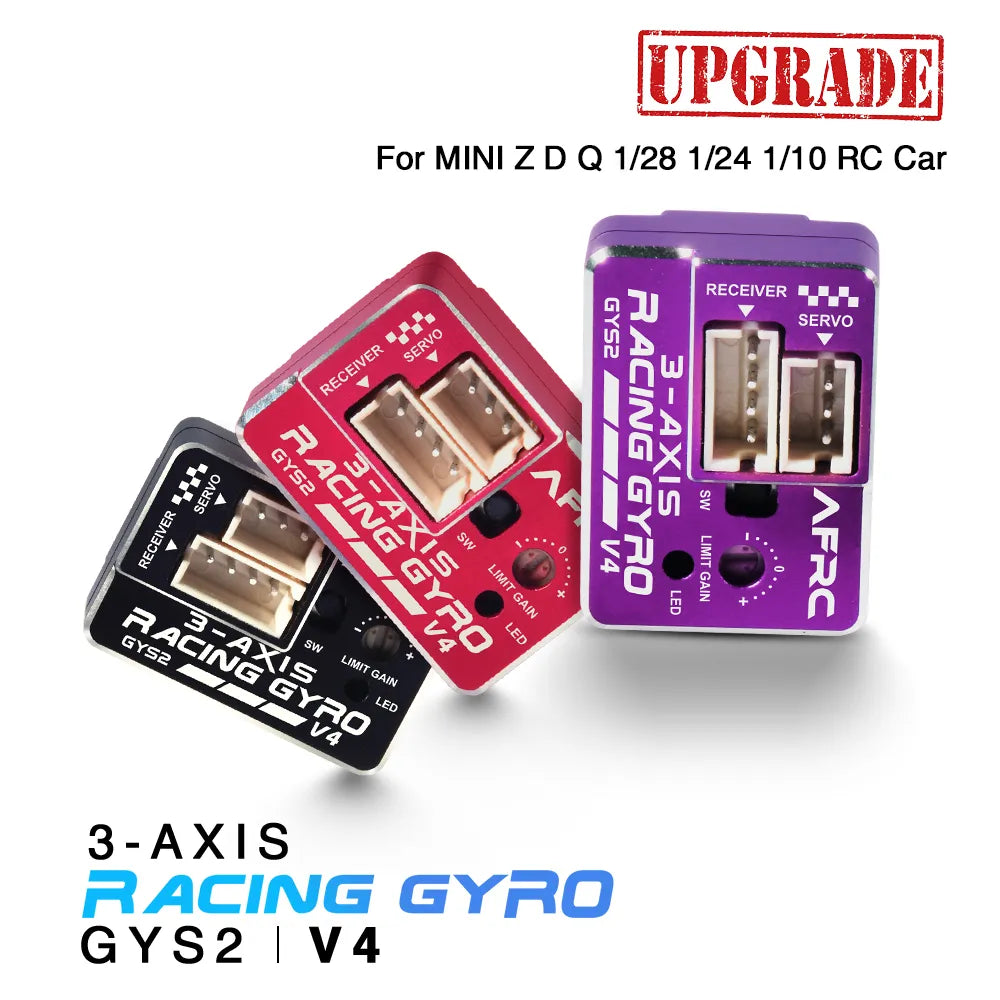

AFRC-GYS-2 V4 3-AXIS Racing Gyro Drift Car Stabilizer EPA AVCS for MINI Z D Q 1/28 1/24 1/10 Car Model

AFRC Micro Gyro GYS2 V4 is the upgraded version of GYS2 V3, which is a high-precision, high-performance, ultra-small-size drift steering gyro designed for mini RC cars. GYS2 V4 hardware and software have been upgraded, the biggest difference in hardware is: the use of a powerful 32BIT processor, more stable and faster data processing. Software: optimize the program at the same time increased the three-axis and AVCS mode, three-axis mode in the mini RC car can be used in the X, Y, Z axis of the different ways of installation. Support most popular control systems on the market, applicable to most devices on the market.

Features:

Dimensions: 21 x 15 x 8.5 mm(0.83 x 0.59 x 0.33inch)
Working Voltage: 3.7 ~ 8.0V
Weight:4g
Current Drain: Less than 30mA
Operating Temperature:-10℃+50℃
Gain Mode: Normal / AVCS Mode
Operating Voltage: PID Control System
Input Signal: PWM(50~333Hz)/SANWA SSR/SUR/SXR/SHR;FUTABA S.BUS/S.BUS2
Input & Output Plug: JST1.5mm (attached the signal input cable to connect with receiver)
X, Y, Z three-axis selection:
Press and hold SW to power on to enter the travel setting, then double-click SW to enter the axis selection, the red light
flashes twice and it will stay solid red light (default Z axis), press SW to switch to the X axis green light It flashes twice quickly
and turns on, then press it again to switch to the Y-axis, the blue light will be solid, and continue to press SW to switch to the
Z-axis. If you do not operate the SW key for 5 seconds, it will automatically exit, and the gyro will automatically enter the initialization.

Model Number: AFRC-GYS2-V4
Use: RC Drift Car
